Melting point

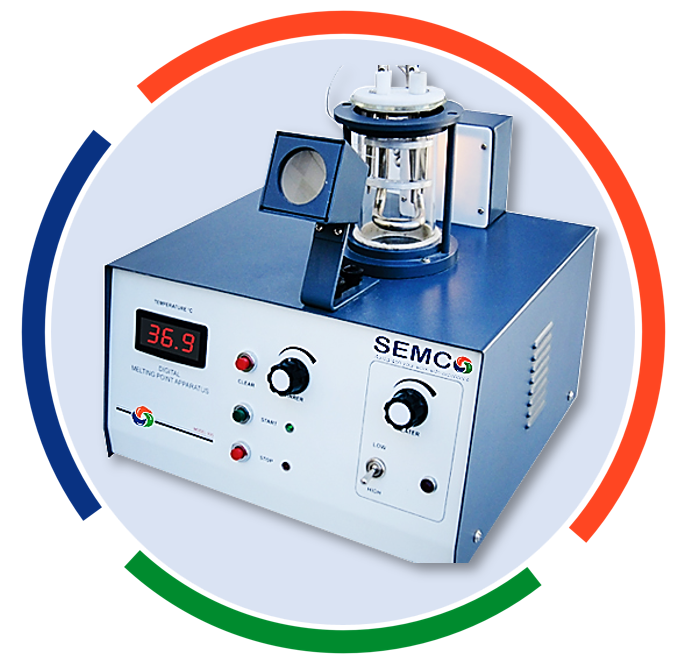

Melting Point Apparatus with 4 digits, 7 - Segment LED display is designed for accurate measurement of melting points and for checking the melting range of the solid samples. The apparatus consists of a silicon bath of about 200 ml capacity, covered with ptfe cover with 3 holes fitted, with a special type of oil immersion heater having three holes for holding the capillaries, one for boiling point tube and one for the thermometer. The apparatus consists of in-built magnetic stirrer, an electronic controller with indicator for precisely adjusting the rate of heating of silicon oil-bath, an ON/OFF switch, a pilot lamp, with magnifier, a glare free background illuminator, a High/Low range temperature selector switch and digital temperature indicator with PT100 RTD sensor.
